รหัสสินค้า : VE2812R

HDMI HDBASET RECEIVER WITH AUDIO DE-EMBEDDING (4K@100M) (HDBASET CLASS A)

ยี่ห้อ ATEN รุ่น VE2812R

อุปกรณ์รับสัญญาณ 4K HDMI ผ่านสาย CAT5e/6/6a เส้นเดียว ไกล 100m ใช้เทคโนโลยี HDBaseT Class A มี Long Reach mode ที่ช่วยให้ต่อได้ถึง 150m ที่ 1080p รองรับ EDID

The VE2812R is a high-quality HDMI HDBaseT Receiver featuring audio de-embedding function. Powered by HDBaseT™ technology, the VE2812R can receive 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable.With HDBaseT Long Reach Mode enabled, it can deliver HDMI signals up to a maximum range of 150 meters @ 1080p.

The VE2812R’s audio de-embedding function extracts the audio signal from the HDMI and converts it into S/PDIF Coaxial or Stereo Audio signal and delivers to an audio system that is separated from the display. Compatible with HDMI 1.4 (3D, Deep Color, 4k) and HDCP 2.2, the VE2812R ensures reliable transmission of high-quality uncompressed HDMI signals.

The VE2812R is recommended to be deployed in paired with the VE2812T. The VE2812R can carry on IR/RS-232 from the VE2812T, allowing users to remotely control the VE2812T unit through RS-232 command mode via input port switching. The solution is deal for a variety of settings, such as meeting rooms, digital educational environment or wherever high video quality is required.

FEATURES

• Superior video quality
• 4K HDMI up to 100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
• 1080p up to 150 m via a single Cat 5e/6 cable in HDBaseT Long Reach Mode
• HDMI 1.4 (3D, Deep Color, 4K); HDCP 2.2 compliant
• Supports Audio EDID Switching (2ch Stereo, 5.1ch Surround sound, and AUTO)
• Supports Audio De-Embedding – extracts audio stream from an HDMI source and delivers as a separate audio from HDMI, Coaxial S/PDIF, or Stereo audio output
• Features RS-232 Serial Communication Switch – Command mode and Bypass mode to meet application requirements
• Supports bi-directional IR signal transmission - two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
• Firmware upgradable
• Built- in 8KV / 15 KV ESD protection
• Plug-and-play
• Rack-mountable using the VE-RMK1U

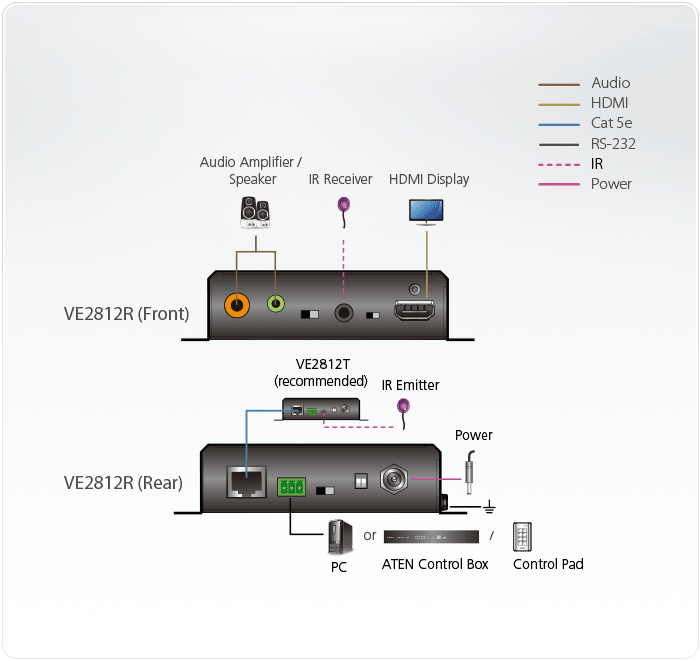

DIAGRAM
