VANZEL LM44H 4x4 HDMI Matrix Switch

รหัสสินค้า : LM44H

ราคา

฿ 14,900.00

จำนวนที่จะซื้อ
ราคารวม ฿ 14,900.00

สินค้าไม่เพียงพอ

สินค้าหมด

4K HDMI MATRIX 4X4

ยี่ห้อ VANZEL รุ่น LM44H

  • HDMI matrix switch เข้า 4 ออก 4 รองรับความละเอียด 4K รองรับ HDR10

คุณสมบัติ

  • รองรับช่องสัญญาณ input 4 ช่อง รองรับช่องสัญญาณ output 4 ช่อง
  • รองรับความละเอียดสูงสุด 4096x2160@60Hz
  • รองรับแบนด์วิดท์สูงสุด 18Gpbs
  • รองรับ HDR 10
  • รองรับการควบคุมอุปกรณ์ผ่าน รีโมทคอนโทรล, RS232 และปุ่มกดหน้าเครื่อง
  • รองรับกาารตั้งค่า EDID
  • ช่องสัญญาณ HDMI output 2 ช่อง รองรับการ Auto Down-scaling
  • รองรับ Lightning protection, surge protection, ESD protection.

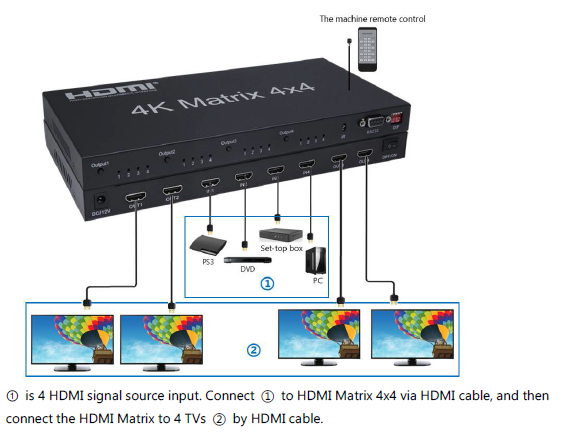

การเชื่อมต่อ



ข้อมูลจำเพาะ

ItemsDescription
HDMI versionHDMI2.0(HDR,YUV4:4:4)
Compatible with HDCP2.2,HDCP1.4
HDMI interface4 HDMI input, 4 HDMI output
Transmission rate18Gbps
Bandwidth600MHz
Resolution480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,
720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz,
3840×2160@24/25/30/60Hz, 4096×2160@24/25/30/60Hz
Audio formatLPCM7.1/DTS-HD/DTS-Audio/Dolby Digital plus/
Dolby TrueHD 7.1/Dolby Digital 7.1CH/Dolby Atmos
RS-2323 Pin(GND/Rx/Tx), Baud rate 9600
VoltageDC5V/1A
Power consumption<4W
Working temperature-20℃~60℃
Storage temperature-30℃~70℃
Humidity0~90%RH(No Condensation)
HousingIron
ColorBlack
Dimensions210.0(L)*80.0(W)*21.0(H) mm
Weight

375g

Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection

อุปกรณ์ในชุด

  • HDMI matrix x1
  • Remote control x1
  • Mounting Ear x2
  • Screw x6
  • Grounding Screw x1
  • Terminal block x1
  • 5V/1A Power Adapter x1
  • User manual x1
