รหัสสินค้า : VP1420

4 X 2 TRUE 4K PRESENTATION MATRIX SWITCH

ยี่ห้อ ATEN รุ่น VP1420

The ATEN VP1420 is a multi-in-one presentation switch that integrates a video matrix switch, True 4K scaler, audio processor, and analog-to-digital converter functions into one compact device that easily mounts under a table or in a rack. With four analog/digital inputs to two HDMI True 4K outputs, it is designed to boost the efficiency and impact of professional presentations.

With streamlined control from front-panel pushbuttons, IR remote controller, RS-232, and web-based GUI via Ethernet, the VP1420 reduces not only system device count, but also lowers operation complexity. It is suitable for all meeting space and education environments, such as huddle rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition galleries or hotels.

FAST ANALOG/DIGITAL AV MATRIX SWITCHING

• Supports multi-format 4 Inputs – 3 HDMI and 1 VGA inputs
• 2 HDMI outputs
• Audio embedding – stereo audio can be embedded into HDMI output or separated to balanced audio output
• Audio de-embedding – HDMI audio can be extracted to unbalanced audio output
• Auto switching – automatically detects and switches to a new source as soon as it is connected for time-saving and convenience

HIGH-DEFINITION VIDEO WITH OPTIMUM OUTPUT

• Superior video quality – up to 4096 x 2160@60Hz (4:4:4) (HDMI)
• Supports HDR
• Scaler – supports video upscaling to 4K on display A and downscaling to 1080p on display B
• EDID Expert™ – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
• HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant

VERSATILE, STREAMLINED OPERATION

• Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, and web-based GUI through Ethernet
• Supports stand-by mode for power saving and fast waking up

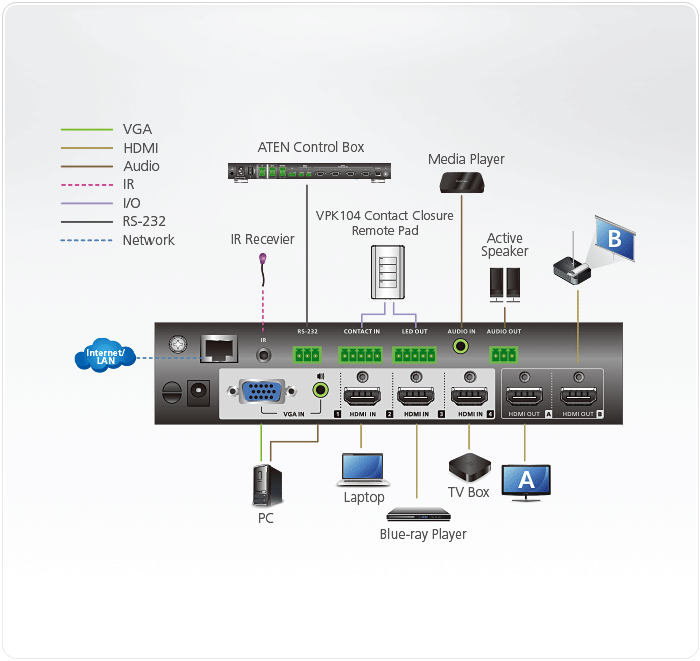

DIAGRAM
