รหัสสินค้า : UH901

HDMI SWITCH 9x1

ยี่ห้อ NEXIS รุ่น UH901

UH901 is a standalone device which designed to simultaneously display up to nine HDMI multimedia sources on a single HDMI monitor. You can dynamically arrange nine HDMI multimedia sources and seamlessly exhibit them in various mode. Switching between various sources and modes do not have delays or black screen. It is the ideal solution for A/V Switching, Broadcasting, or Venue status tracking.

Multiple Video Modes

You may select the desired display mode based on your requirement, for example, 9-pane or Picture-in-Picture. These display

modes can be seamlessly switched for better surveillance viewing and verification without black screen.

Multiple Video Modes

You may select the desired display mode based on your requirement, for example, 9-pane or Picture-in-Picture. These display modes can be seamlessly switched for better surveillance viewing and verification without black screen.

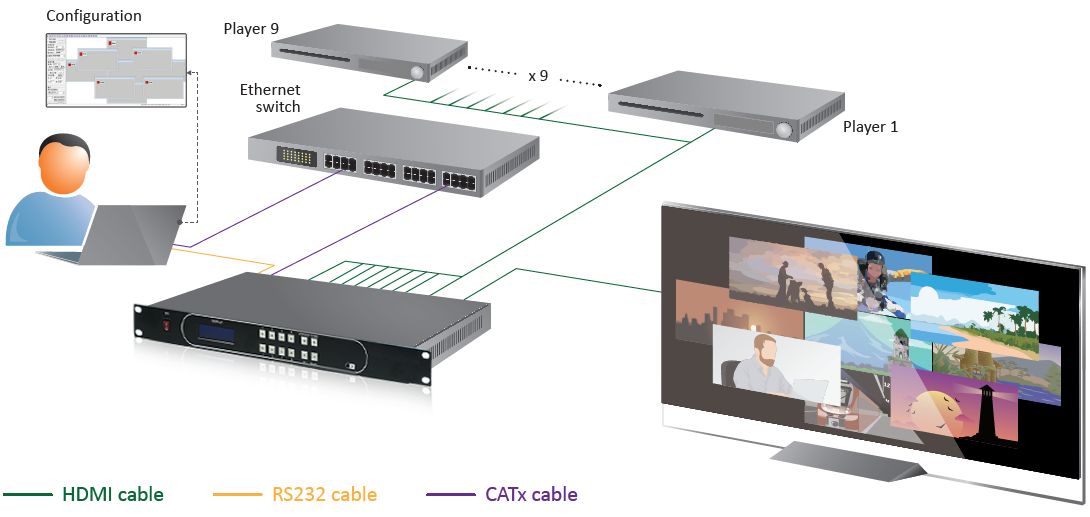

Multiple Method of Operating

Various operating methods are provided, you can operate the switch intuitively by pressing the front panel buttons or using the remote control. Alternatively, you also can connect the switch to a computer via Ethernet or RS232 to operate the switch.

FEATURES

• Support up to 9 HDMI sources to one HDMI display
• Switch easily and quickly between 9 HDMI sources
• Support HDMI 1.4 with Deep Color and HDCP 1.2.
• Support input/output resolution up to 4K@30fps
• Intuitive operations by front panel button, IR remote control
• Built-in RS-232 port and Ethernet connectivity for advanced operations
• Support firmware upgrade
