รหัสสินค้า : VS482B

4-PORT TRUE 4K HDMI SWITCH WITH DUAL OUTPUT

ยี่ห้อ ATEN รุ่น VS482B

The ATEN VS482B Switch is an ideal solution for application requiring superior video resolution of True 4K when connecting 4 HDMI A/V sources to 2 HDMI displays. Complying with HDMI 2.0 standards, the switch’s Audio Return Channel (ARC) function allows users to send audio without having to attach a separate audio cable.

Furthermore, the VS482B offers switching methods between HDMI sources by front panel pushbuttons, IR remote control and RS-232 commands, enabling users to effortlessly select desired input. Equipped with EDID Expert™, the VS482B benefits users with optimum EDID settings for smooth power-up and highest-quality display across different screens. Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.

FEATURES

• Allows up to 4 HDMI A/V sources to be connected to 2 HDMI displays
• Superior video quality – up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4); HDR supported
• HDMI 2.0 (3D, Audio Return Channel, Deep Color); HDCP 2.2 compliant
• Supports Auto Switch – the VS482B automatically switches to a newly plugged-in source
• Audio Return Channel (ARC) function – connects an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
• OSD for system configuration settings and information display
• Switching between HDMI input sources via front panel pushbuttons, IR remote control and RS-232 commands
• EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
• Built-in bi-directional RS-232 serial control port for high-end system control
• HDMI audio can be extracted to stereo audio and digital audio (optical/coaxial) outputs
• Supports 5.1 channel audio output
• Supports Consumer Electronic Control (CEC)
• Rack mountable

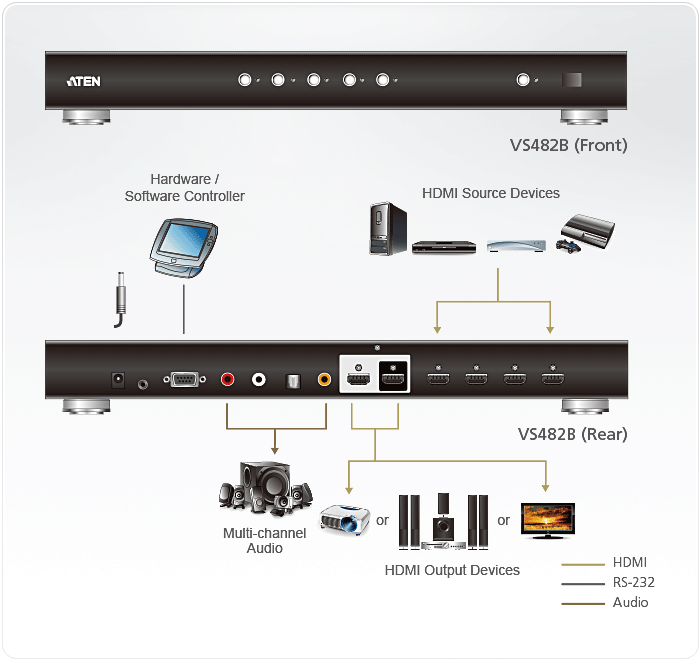

DIAGRAM
