ATEN CE100 MINI USB KVM EXTENDER

รหัสสินค้า : CE100

ราคา

฿ 10,000.00

จำนวนที่จะซื้อ
ราคารวม ฿ 10,000.00

สินค้าไม่เพียงพอ

สินค้าหมด

MINI USB KVM EXTENDER

ยี่ห้อ ATEN รุ่น CE100

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).

The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.

คุณสมบัติ

  • Extends local PC VGA/keyboard/Mouse to Remote side
  • Uses Cat 5e cable to connect the local and remote units
  • Easily add or remove computers connected to the installation
  • Supports real time DDC communication
  • Superior video quality – up to 1920 x 1200
  • Allow access to a computer from the remote console up to 100 m distance
  • Support manual compensation adjustment for better video quality
  • No external power supply needed for local unit
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Wall mountable

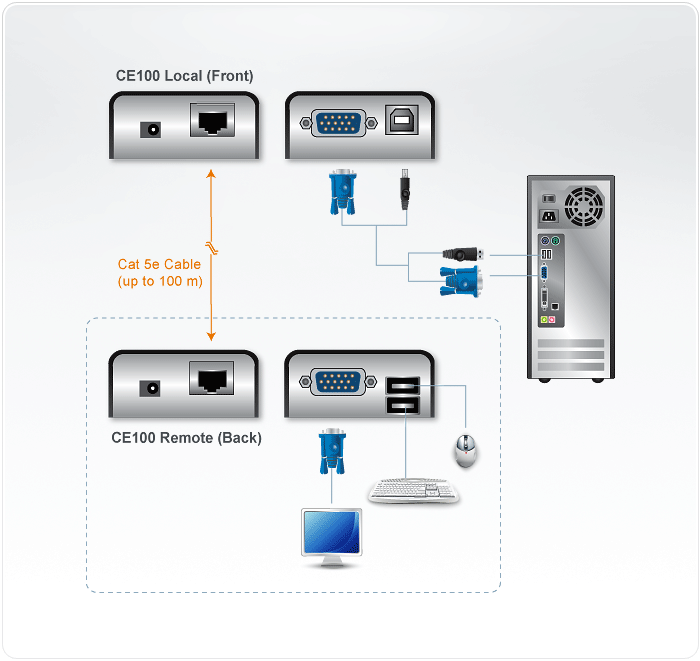

ผังการต่อ

Package Contents

  • 1x CE100L Mini USB KVM Extender (Local Unit)
  • 1x CE100R Mini USB KVM Extender (Remote Unit)
  • 1x KVM Cable (VGA, USB; 1.5m/5ft)
  • 1x Power Adapter (for Remote Unit)
  • 1x Mounting Kit
  • 1x User Instructions
