รหัสสินค้า : CE774

USB DUAL VIEW KVM EXTENDER

ยี่ห้อ ATEN รุ่น CE774

ATEN CE774 Dual View KVM Extenders allows access to a computer system from a remote Dual View console up to 300 m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake- Up feature that allows you simply uses a push buttonfrom the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, efficient and flexible.

Use the improved built-in front panel tuners to easily adjust the picture quality. In addition, you can automatically synchronize the time delay of RGB signals in order to compensate for distance, easy and fast than ever.

FEATURES

• Dual View Support - connect two screens to transmit two video output signals to a remote site up to 300 m away using in expensive Cat5e/6 cables
• Dual Console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
• PC Wakeup support - from the remote console, simply use a pushbutton to wake a computer at the local site via RS-232
• Superior video quality
•  – CE774: 1920x1200@60Hz(30m), 1600x1200@60Hz(150m)
• Gain/Compensation Control – adjusts signal strength in order to compensate for distance
• RS-232 Channel – allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
• Sun/Mac keyboard support and emulation*

** 1. PC keyboard combinations emulate Sun/Mac keyboards.

  2. Sun/Mac keyboards only work with their own computers.

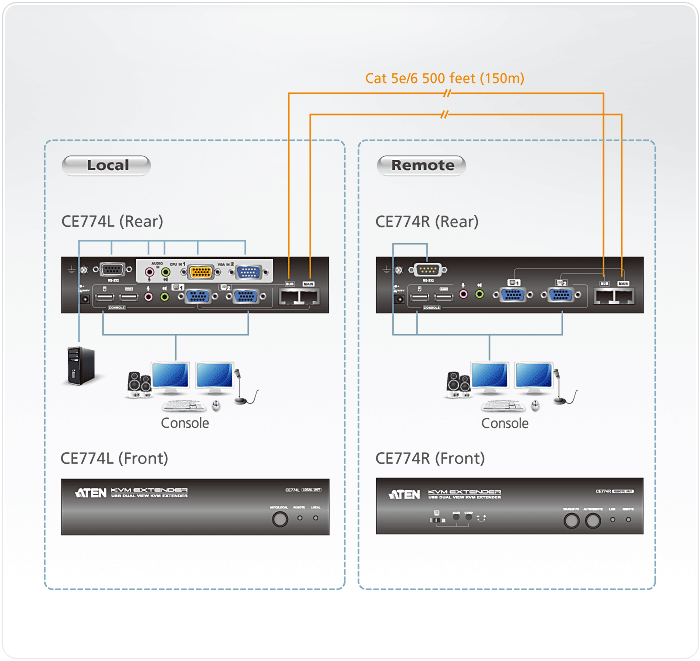

DIAGRAM

Package Contents

• 1x CE774L USB KVM Extender (Local Unit)
• 1x CE774R USB KVM Extender (Remote Unit)
• 1x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
• 1x VGA Cable (1.8m)
• 2x Power Adapters
• 1x Mounting Kit
• 1x User Instructions
