USB DUAL VIEW KVM EXTENDER WITH DESKEW

ยี่ห้อ ATEN รุ่น CE775

ATEN CE775 Dual View KVM Extenders (with Deskew function for CE775) allows access to a computer system froma remote Dual View console up to 300m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake-Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, efficient and flexible.

Use the improved built-in front panel tuners to easily adjust the picture quality. In addition, you can automatically synchronize the time delay of RGB signals in order to compensate for distance (CE775), easy and fast than ever.

FEATURES

• Dual View Support - connect two screens to transmit two video output signals to a remote site up to 300 m away using in expensive Cat5e/6 cables
• Dual Console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
• Deskew Function (CE775 only) – automatically synchronizes the time delay of RGB signals to compensate for distance
• PC Wakeup support - from the remote console, simply use a pushbutton to wake a computer at the local site via RS-232
• Superior video quality
•  - CE775: 1920x1200@60Hz(150m), 1280x1024@60Hz(300m)
• Gain/Compensation Control – adjusts signal strength in order to compensate for distance
• On Screen Display (CE775 only) - conveniently adjust video quality with the intuitive OSD menu system
• RS-232 Channel – allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
• Sun/Mac keyboard support and emulation*

** 1. PC keyboard combinations emulate Sun/Mac keyboards.

   2. Sun/Mac keyboards only work with their own computers.

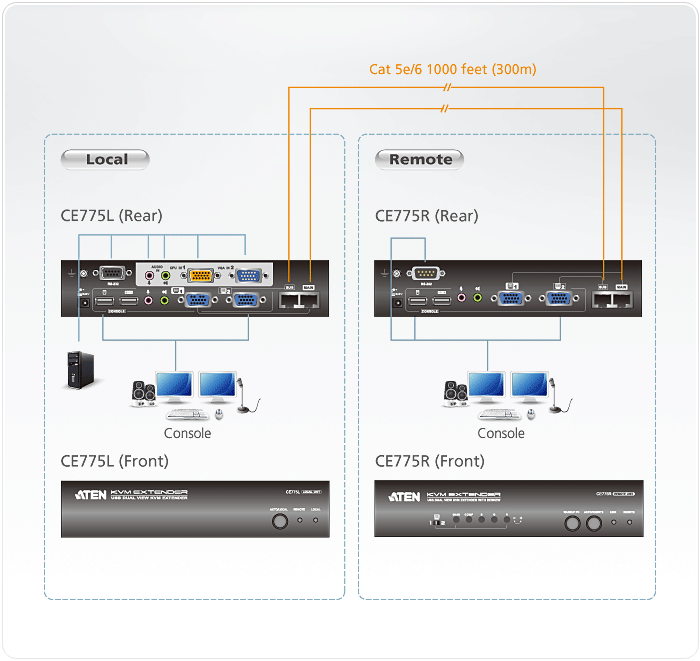

DIAGRAM

Package Contents

• 1x CE775L USB KVM Extender (Local Unit)
• 1x CE775R USB KVM Extender (Remote Unit)
• 1x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
• 1x VGA Cable (1.8m)
• 2x Power Adapters
• 1x Mounting Kit
• 1x User Instructions
