USB DVI HDBASET™ 2.0 KVM EXTENDER (1920 X 1200 @100M)

ยี่ห้อ ATEN รุ่น CE620

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat5e/6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

FEATURES

HDBaseT™ 2.0 connectivity technology

- Extends video, audio, USB and RS-232 signals via a single Ethernet cable

- EDID Buffer for smooth power-up and the highest quality display

- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions

Long distance superior video quality

- HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m

- HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m

Long Reach mode switch — switches between HDBaseT™ Standard and Long Reach modes in a snap

Integrated USB 2.0 ports — ensuring fast transmission speeds for peripherals

Supports 2-channel PCM digital audio — ensuring highquality audio transmissions

Supports PC Wakeup function via pushbutton or hotkey

Built-in 8KV/15KV ESD pr otection (Contact voltage 8KV; Air voltage 15KV)

Note: The CE620 does not support HDCP.

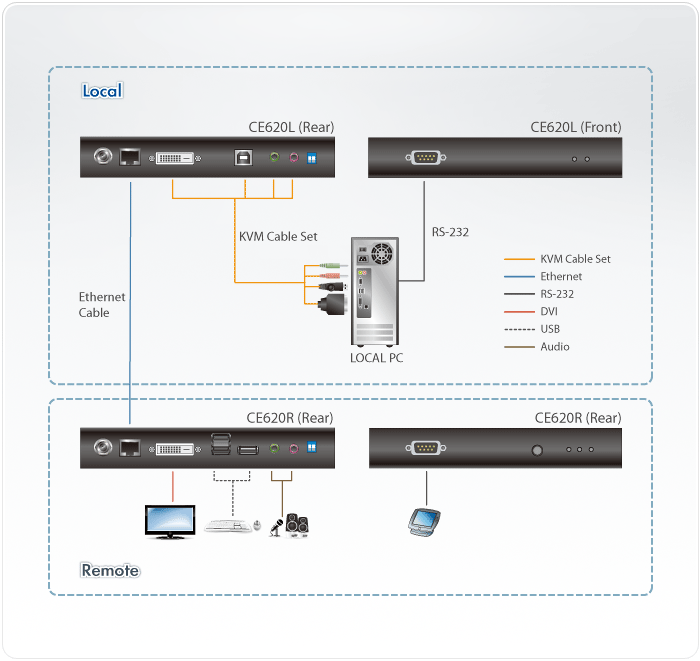

DIAGRAM

Package Contents

• 1x CE620L USB DVI HDBaseT 2.0 KVM Extender (Local Unit)
• 1x CE620R USB DVI HDBaseT 2.0 KVM Extender (Remote Unit)
• 1x Custom KVM Cable (DVI, USB; 1.8m/6ft)
• 2x Power Adapters
• 2x Mounting Kits
• 8x Foot Pads
• 1x User Instructions
