USB DVI DUAL VIEW HDBASET™ 2.0 KVM EXTENDER (1920 X 1200 @100M OR 150M)

ยี่ห้อ ATEN รุ่น CE624

The ATEN CE624 USB DVI Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE624 delivers high-quality DVI Dual View video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat6/6a cable. With a simple cable installation supporting various signals, the CE624 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

FEATURES

Allows DVI Dual View access to a computer and KVM control from a remote console

HDBaseT™ 2.0 connectivity technology

- Extends video, audio, USB and RS-232 signals via a single Cat6/6a cable

- EDID Buffer for smooth power-up and the highest quality display

- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions

Long distance superior video quality

- HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m

- HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m

(the resolution is supported with single view only; dual-view resolution is up to 720p)

Long Reach mode switch - switches between HDBaseT™ Standard and Long Reach modes in a snap

Integrated USB 2.0 ports - ensuring fast transmission speeds for keyboard, mouse and peripherals

Supports 2-channel PCM digital audio - ensuring high quality audio transmissions

Supports PC Wakeup function via pushbutton or hotkey

Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)

HDCP compatible

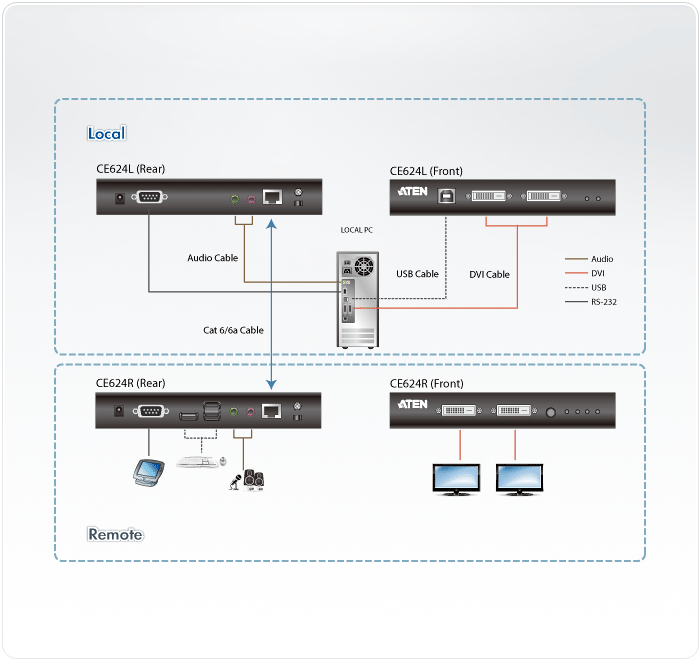

DIAGRAM

Package Contents

• 1x CE624L USB DVI Dual View HDBaseT 2.0 KVM Extender (Local Unit)
• 1x CE624R USB DVI Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
• 2x DVI-D Cables (1.8m)
• 1x Pink Audio Jack Cable Sets (1.8m)
• 1x Green Audio Jack Cable Sets (1.8m)
• 1x USB Cable (1.8m)
• 2x Power Adapters
• 8x Foot Pads
• 2x Mounting Kits
• 1x User Instructions
