รหัสสินค้า : CS1792

2-PORT USB HDMI KVM SWITCH

ยี่ห้อ ATEN รุ่น CS1792

CubiQ™ CS1792 HDMI KVM switch ทำให้ควบคุมการเชื่อมต่อจอภาพ LED, LCD TV เข้ากับคอมพิวเตอร์หรือเครื่องเล่น HD ต่างๆ ได้อย่างสะดวกลงตัว ประหยัดพื้นที่ติดตั้ง

FEATURES

• 2-port HDMI USB 2.0 KVMP™ Switch
• One USB console controls two HDMI-interface computers and two additional USB devices
• 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
• Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
• HDMI digital monitor support - fully compliant with HDMI 1.3a; also HDCP compliant
• Dolby True HD and DTS HD Master Audio support
• Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
• Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
• Supports widescreen resolutions
• Multiplatform support - Windows, Linux,and Mac
• Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
• Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
• Complete keyboard emulation for error-free booting
• Mac keyboard support and emulation*
• Auto Scan Mode for monitoring all computers and HDMI devices
• Firmware Upgradable

*1. PC keyboard combinations emulate Mac Keyboards

2. Mac keyboards only work with their own computers

PACKAGE CONTENT

1x CS1792 USB 2.0 HDMI KVMP™ Switch

2x Custom HDMI KVM Cable Sets

1x Firmware Upgrade Cable

1x Power Adapter

1x USB-to-PS/2 Converter

1x User Manual

1x Quick Start Guide

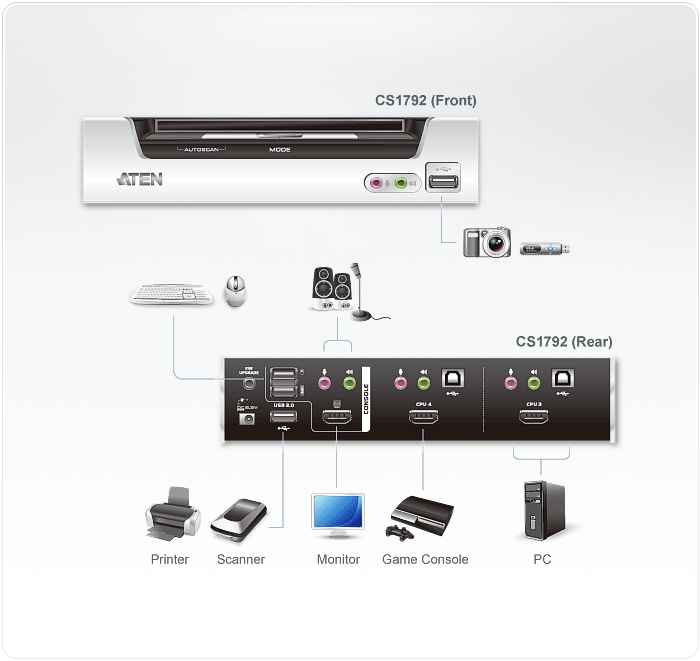

DIAGRAM
