รหัสสินค้า : VS162

DVI 1X2 SPLITTER

ยี่ห้อ ATEN รุ่น VS162

1x2 DVI splitter แสดงผลออก 2 จอพร้อมกันทั้งภาพและเสียง

ความละเอียดสูงสุด 1920x1200@60Hz

FEATURES

• Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
• Fully compliant with DVI-Digital and DVI-Analog.
• Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors. Speaker enabled for audio enjoyment.
• Cascadable to 3 levels - provides up to 8 video signals.
• Installs in minutes.
• Maintains highest single link video resolution (up to 1920 x 1200).
• DDC, DDC2, DDC2B Compatible (Port 1 only).
• OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

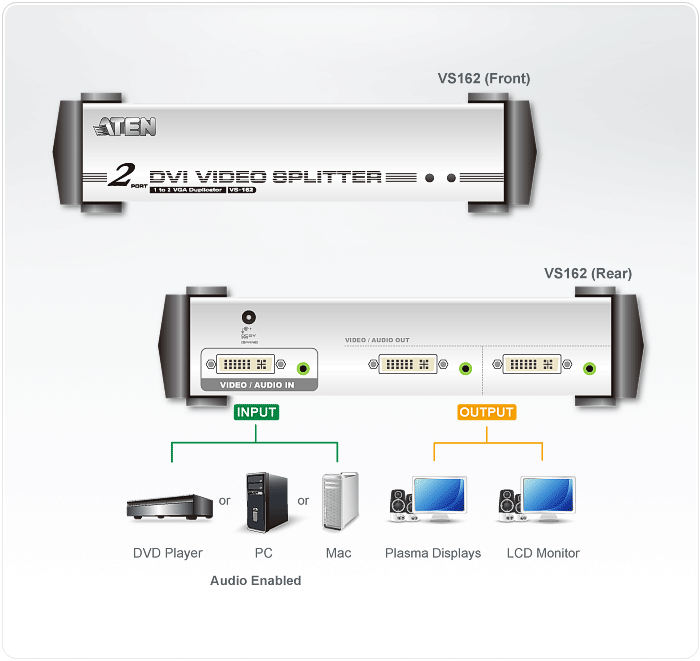

Diagram

Specification

Computer Connections 2

Connectors

Video In 1 x DVI Female (White)

Audio In 1 x Mini Stereo Jack Female (Green)

Video Out 2 x DVI Female (White)

Audio Out 2 x Mini Stereo Jack Female (Green)

Power 1 x DC Jack (Black)

LEDsOnline 1 (Orange)Selected1 (Green)

Resolution 1920 x 1200 @60 Hz

Signal Range Up to 5m (15')

Power ConsumptionDC 5.3V,3.4W (Max.)

Environment

Operating Temp.0-50 C

Storage Temp. -20-60 C

Humidity 0-80% RH, Non-condensing

Physical

PropertiesHousing Metal

Weight 0.62 kg

Dimensions ( L x W x H ) 21.00 x 8.70 x 5.50 cm
