รหัสสินค้า : VE600A

DVI EXTENDER WITH AUDIO

ยี่ห้อ ATEN รุ่น VE600A

VE600A DVI Extender อุปกรณ์ช่วยขยายสัญญาณ DVI + Audio ได้ไกลถึง 60 เมตร แบบ CAT5e รองรับความละเอียดสูงสุด 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m)

The VE600A DVI Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE600A incorporates ATEN’s technology that allows the A/V signal to be transmitted over one Cat 5e cable. If the real EDID is required, simply use a second Cat 5e cable. With stereo audio support and support for popular widescreen formats, the VE600A provides crystal-clear image and sound quality in all installations where remote DVI video displays are required.

คุณสมบัติ

• Extends the distance between DVI source and DVI display device
• Long distance transmission – up to 60 m
• Uses Cat 5e cable to connect the local and remote units
• Features ATEN EDID technology that allows transmission over one Cat 5e cable
• Superior video quality – up to 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m)
• Audio enabled
• Adjustable EQ compensation control
• Supports widescreen formats
• Rack mountable
• HDCP Compatible

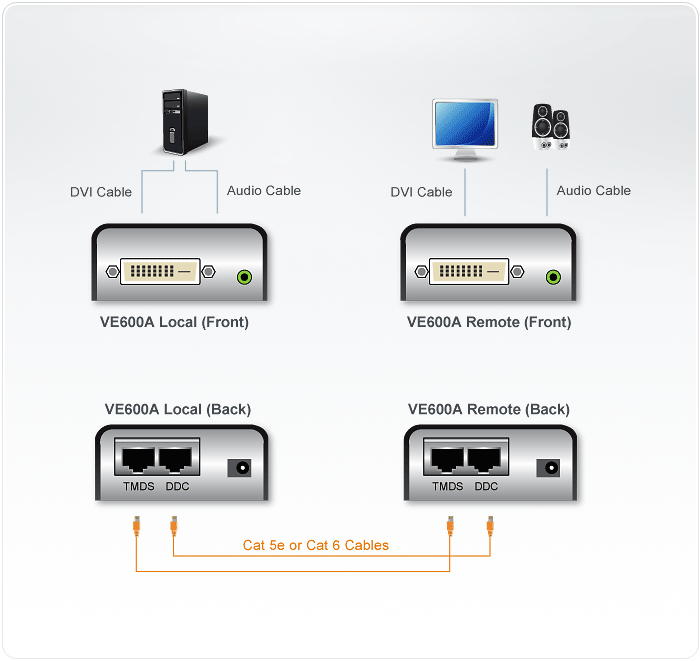

ผังการต่อ

Package Contents

• 1x VE600A DVI Extender with Audio Local Unit
• 1x VE600A DVI Extender with Audio Remote Unit
• 2x Power Adapters
• 1x Mounting Kit
• 1x User Instructions
