รหัสสินค้า : VE607

DVI/AUDIO CAT 5 EXTENDER WITH MK WALL PLATE

ยี่ห้อ ATEN รุ่น VE607

The VE607 DVI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends DVI and audio signals up to 60 m over Cat 5e/6 cable and supports wide screen formats while ensuring excellent video quality.

The VE607 can be easily powered at either the transmitter or receiver side using a second Cat 5e/6 cable. The VE607’s compact wall plate design does away with bulky cables allowing a neat and convenient installation. Therefore, it is a perfect solution for function rooms, museums and any setting that requires equipment or cabling to be kept from the public’s view.

FEATURES

• Uses two Cat 5e/6 cables to connect the local and remote units- one to transmit video, and another for power*
• Remotely powered from either the transmitter or receiver side**
• Extends the distance between DVI source and DVI display
• Superior video quality – up to 1920 x 1200@40m; 1280 x 1024@60m
• Designed to mount in one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes.
• Supports 8 segment equalization adjustment via switch
• Supports wide screen formats
• Supports hot- plugging
• Supports stereo audio
• Built- in 8KV/ 15 KV ESD protection
• Plug- and- play with no software installation required
• LED indication of power sources / connection status

* A second Cat 5e/6 cable connection is required to remotely power on either the transmitter or receiver

** A power adapter is provided with this package and can be used at either the transmitter or receiver side, which in turn remotely powers the other unit

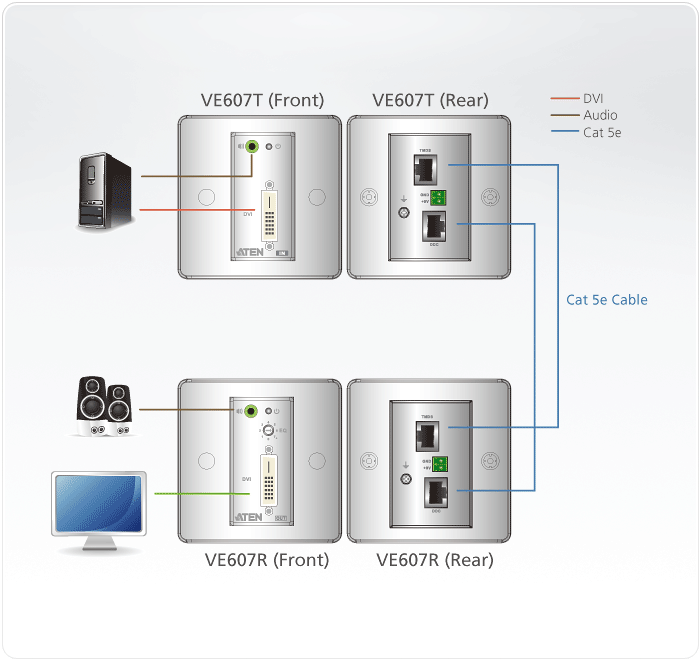

DIAGRAM
