DVI OVER CAT5E/6/7 RECEIVER WITH 24V POC AND 2 LAN SERVING
ยี่ห้อ CYP รุ่น CDVI-1109RXC

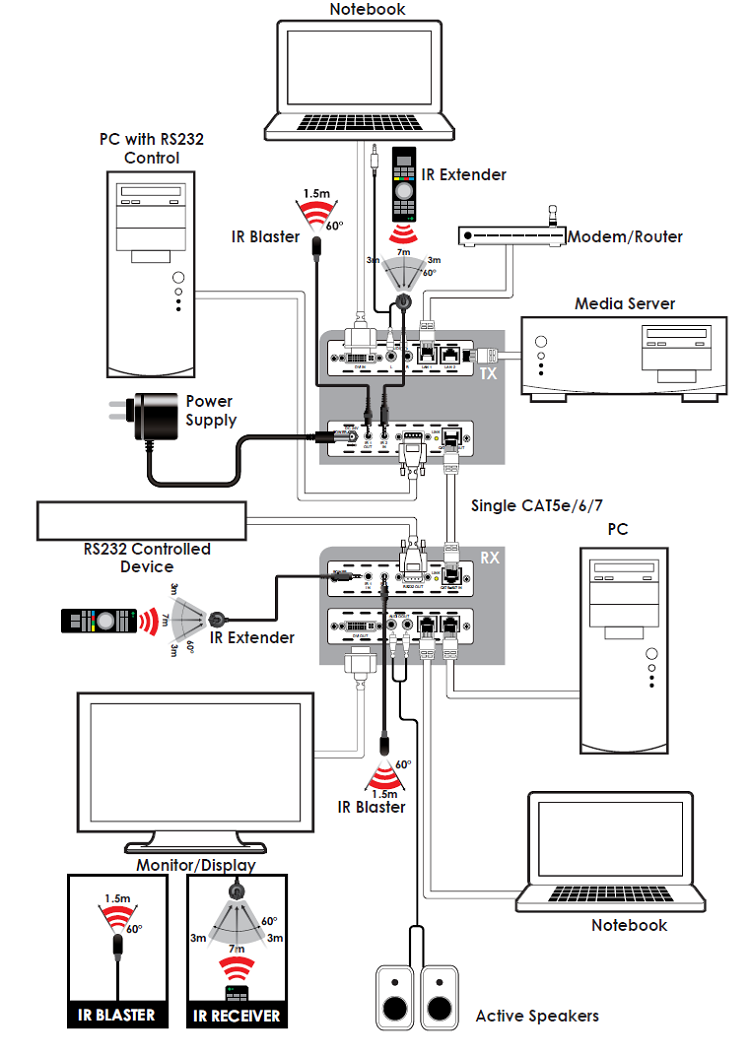

This HDBaseT DVI over CAT5e/6/7 transmitter and receiver set can transmit DVI video, analog audio, 2 LAN serving connections, control (RS-232 and IR) and Power over Cable (PoC) over a single CAT5e/6/7 cable up to 100m.
The transmitter can power the receiver, via the PoE function, eliminating the need for a separate power supply providing greater flexibility in installations.
* ในชุดไม่รวม Transmitter ต้องใช้คู่กับ CDVI-1109TXC
FEATURES
- Supports 3D formats and 4K2K resolution with HDMI to DVI adaptor
- Simultaneous transmission of uncompressed video and audio (1080p@60Hz/Deep Color) over a single CAT5e/6/7 cable up to 100m
- Supports High-definition Audio formats (up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio)
- Connect and share up to 4 LAN connections (2 at the receiver end, 2 at the Transmitter end) at speeds up to 100Mbps
- Supports bi-directional IR control and RS-232 pass-through
- Full 5Play™ convergence: Video, Audio, LAN serving, Power over Cable (PoC) and Control (IR & RS-232 bypass)
- Single power supply powers both units, Receiver unit is powered through the Transmitter via PoE
- Installation friendly
Inputs
1x RJ45 [1x HDMI & Propriety Data]
1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
Outputs
1x DVI-I [1x DVI-D]
2x RCA [1x Stereo (L/R)]
1x 9-pin D-sub [1x RS-232 Data]
1x 3.5mm Stereo Mini-jack [1x Infrared Emitter]
2x RJ45 [2x LAN Serving]
Dimensions125mm [W] x 135mm [D] x 30mm [H]
Net Weight392g
