รหัสสินค้า : VE510

VIDEO SYNCHRONIZER

ยี่ห้อ ATEN รุ่น VE510

ขยายสัญญาณภาพ VGA (D-sub RGB) เพิ่มคุณภาพความคมชัด และตัดสัญญาณรบกวน (noise) จากการเดินสายสัญญาณระยะไกล

The VE510 Video Synchronizer is designed to compensate for video signal delays over large distances. The VE510's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings, store the settings and retrieve them later using the memory button.

Features

• Connects VGA based video devices to VGA displays and enhances the video quality in long distance installations
• Compensates for a delay and synchronizes signal delays
• RGB delay tuner-manually synchronizes the RGB signals via push buttons
• Skew equalization
• Memory set button-allows the storing and recalling of user settings
• LED display for status monitoring
• Easy to install
• Hot pluggable
• Compact Size-Din Rail and Wall mountable
• Compatible with ATEN KVM Extenders, Video Extenders and KVM Switches
• Remark: Color Adjustment Picture:
• 640x480 800x600 1024x768 1280x1024

Package Content

• 1x VE510 VGA Video Synchronizer
• 1x VGA Cable
• 1x Power Transfer Cable
• 1x Mounting Kit
• 1x Grounding Wire
• 1x User Guide

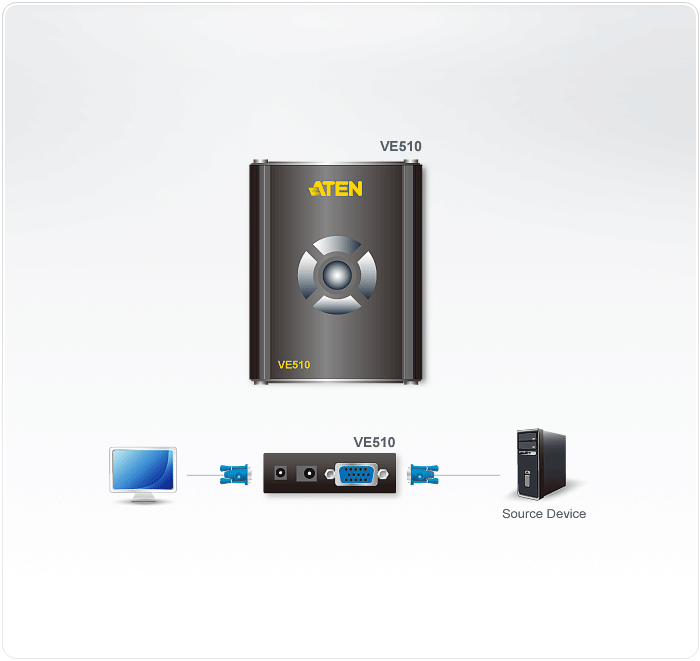

Diagram
