รหัสสินค้า : CLUX-C41C

4×1 HDMI SWITCHER WITH CEC

ยี่ห้อ CYP รุ่น CLUX-C41C

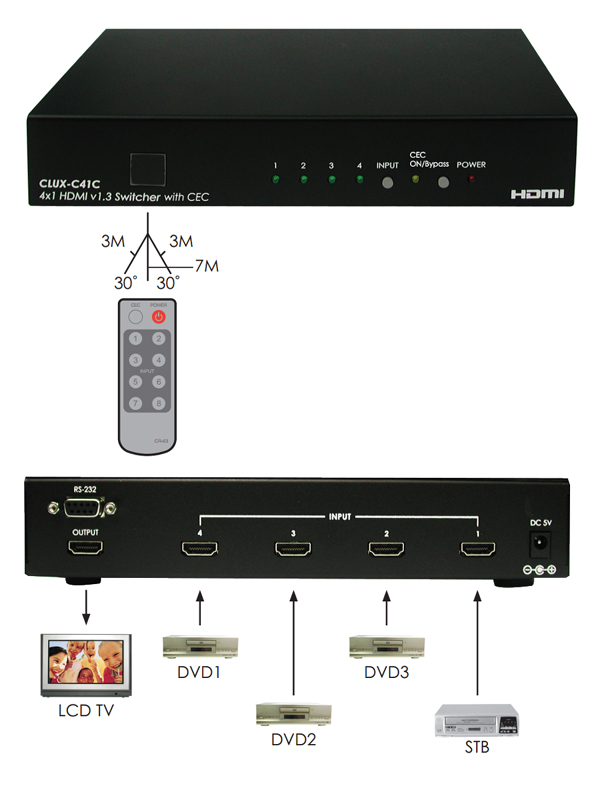

This is a high performance HDMI switcher that allows for various HDMI sources to share one HDTV display. This device features CEC control functions and supports deep color, xvYCC and RS-232 control. Simply press one button select your desired HDMI source to display on the HDTV or use remote control to control your sources from a distance. Switching from one HDMI input source to another will no longer be an inconvenience.

• Multi-sources with one display
• Showroom display
• Educational presentation

FEATURES

• HDMI 1.3 and HDCP 1.1 compliant
• Supports deep color display RGB/YCbCr 4:4:4 24/30/36-bit
• Supports color space YCbCr 4:2:2 16/20/24-bit
• Supports high definition audio – Dolby Digital True HD and DTS-HD Master Audio
• Signal Enhancement feature allows signal quality improvement after long distance transmission
• HDMI cable distance test with 1080p/8-bit resolution, the input/output can reach up to 15/15 meters. If running at 1080p/12-bit, the input/output can reach at up to 15/6 meters
• PC resolution supports: VGA, SVGA, XGA, SXGA, and UXGA (1600 x 1200)
• HD resolution supports: 480i ~1080p@50/60 and 1080p@24
• With remote control function
• Supports RS-232 operation
• Supports CEC control function
• Supports xvYCC

Inputs

4x HDMI [4x Uncompressed AV and Data]

1x 9-pin D-sub [1x RS-232 Data]

Outputs

1x HDMI [1x Uncompressed AV and Data]

PSU: 5V/1A

Dimensions 240mm [W] x 104mm [D] x 44mm [H]

Net Weight 760g
