รหัสสินค้า : VE1812R

HDMI HDBASET RECEIVER WITH POH (4K@100M) (HDBASET CLASS A)

ยี่ห้อ ATEN รุ่น VE1812R

อุปกรณ์รับสัญญาณ HDMI HDBaseT (RX) พร้อม POH รองรับระยะทางสูงถึง 100 เมตร @ 4K / 150 เมตร @ 1080P ผ่านสาย Cat 5e/6/6a เส้นเดียว รองรับ 3D, Deep Color, 4kx2k และ HDCP

The VE1812R features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.

The VE1812R HDMI HDBaseT Receiver with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812R can extend HDMI signal up to 150m @1080p. The VE1812R is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.

FEATURES

• HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
• Supports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p
• 4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable
• HDBaseT Anti-jamming – resists signal interference during high - quality video transmission using HDBaseT technology
• POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
• Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
• Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
• Rack- Mountable

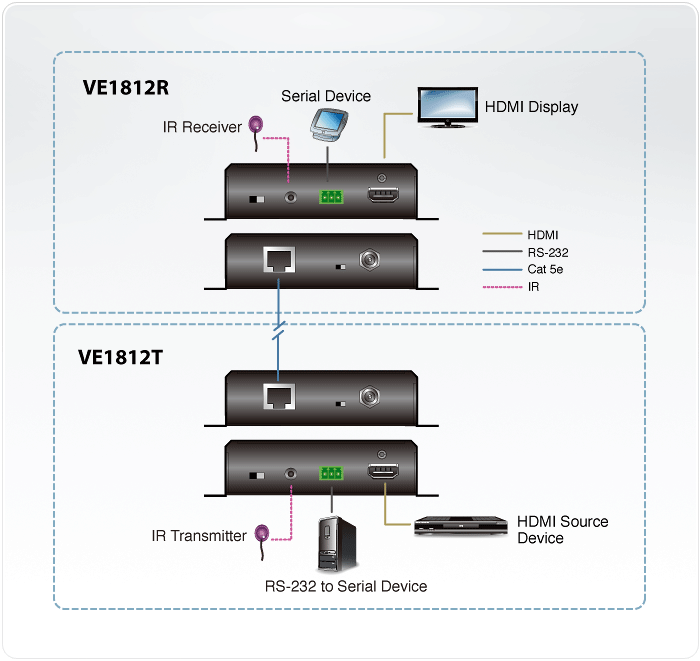

DIAGRAM
